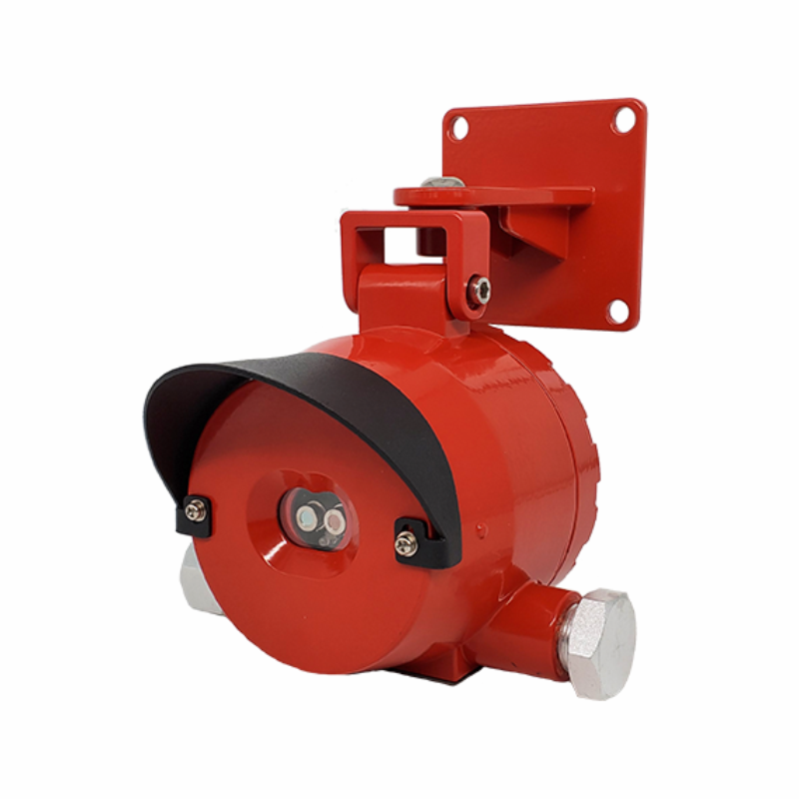

OEM FD1020 Single UV Flame Detector Manufacturers, Factories

•Orresponding spectral range: 185nm~260nm

•Detection object: Flame

•Sampling mode: Real-time optical path sampling

•Display mode: LED display

Send Inquiry

Product Description

Description

The FD10 single UV flame detector is a kind of new-type intelligent fire detection equipment. The detector adopts the advanced UV detection technology. The UV flame detector using the solar blind band is able to suppress the interference from the sunlight in a good manner, so as to achieve a fast response to and accurate identification of the flame signal. The detector adopts the non-contact detection, and its sensitivity can be adjusted on the site. It is provided with a passive connection, and its standard current output is connected with the fire alarm system.

Product Characteristics

Be provided with high-speed, low-power, high-performance 32-bit high-precision data processing chip.

Have excellent resistance to radio frequency and electromagnetic interference and strong anti-interference performance.

Have perfect technical algorithms, high-speed response, high stability and strong ability in preventing false alarm.

Detection angle 120°

The maximum detection distance is up to 30m.

Have multiple-level sensitivity settings to meet the needs of different occasions.

The magnetic rod is used to adjust the sensitivity, without requiring the removal of the cap.

The explosion-proof design is applicable for dangerous areas on many types of industrial sites.

Technical Parameters

Model	FD1020 Single UV Flame Detector
Corresponding spectral range	185nm~260nm
Detection object	Flame
Sampling mode	Real-time optical path sampling
Display mode	LED display
Status indication	The blinking green LED indicates the normal operation (the number blinking times every 3s represents the sensitivity level), and the blinking red LED indicates an alarm.
Operation mode	The magnetic rod is used to adjust the sensitivity (4 levels)
Output signal	4~20mA current; one fault relay contact, one alarm relay contact
Response time	≤5s
Explosion-proof mark	E xd II C T6 Gb/ Ex tD A21
Degree of protection	IP66
Operating voltage	DC24V ± 6V
Operating current	≤30mA(DC24V)
Signal output	Relay passive contact, 4~20mA output
Maximum detection distance	30 m 0.3m*0.3m n-heptane flame
Detection angle	120°
Weight	1.5 ± 0.2 kg
Installation mode	Wall-mounted or suspended or pipe-clamped
Interface of cable entry device	Shell, two NPT1/2 interfaces
Shell	copper-free cast aluminum, epoxy resin baking paint finish
Ambient temperature	-20℃~+60℃
Relative humidity	≤95%RH(without condensation)

Frequently Asked Questions

Q: What is the detection range and angle of the FD1020 Single UV Flame Detector?

A: The detector has a maximum detection distance of up to 30 meters (for a 0.3m*0.3m n-heptane flame) and features a wide detection angle of 120°.

Q: How can the sensitivity of the detector be adjusted?

A: The sensitivity features 4 adjustable levels and can be configured on-site using a magnetic rod, eliminating the need to remove the detector's cap.

Q: What type of output signals does this flame detector provide?

A: The FD1020 provides a standard 4~20mA current output, along with one fault relay passive contact and one alarm relay passive contact.

Q: Is this detector suitable for hazardous industrial environments?

A: Yes. It is designed with an IP66 protection rating and explosion-proof markings (E xd II C T6 Gb / Ex tD A21), making it ideal for dangerous industrial locations.

Q: What is the response time and operating spectral range of this device?

A: The detector responds rapidly to flame signals within ≤5 seconds, operating effectively in the solar blind spectral range of 185nm to 260nm to prevent interference from sunlight.
