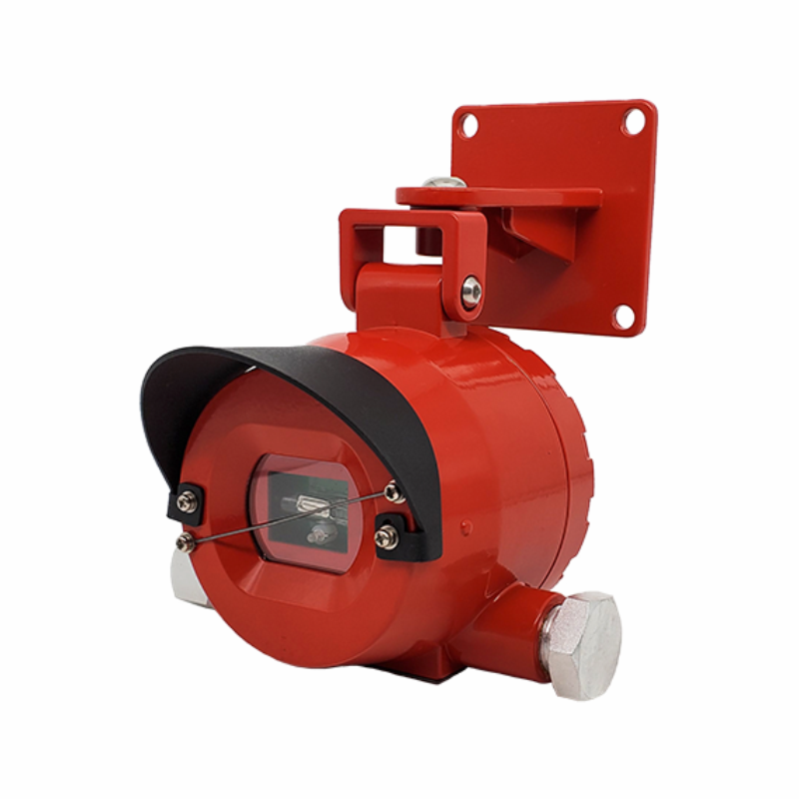

The FD10 dual infrared flame detector is a kind of new-type intelligent fire detection equipment. This detector adopts the high-performance dual infrared sensing technology, and is provided with three infrared sensors with different wavelengths and narrow-band filtering. One sensor is used to reflect the central wavelength of the flame information, and the other is used to monitor other infrared radiation in the environment. Combined with the flicker characteristics of the flame, the radiation spectrum with flame characteristics can be identified as a fire alarm by means of the operational analysis with the high-speed microprocessor and technical algorithm. This detector is able to suppress the interferences such as sunlight, lightning, electric welding, thermal radiation, electromagnetic interference, mechanical vibration, etc., is provided with strong anti-interference capacity, and can quickly respond to and accurately identify the flame signal.
| Model | FD1020 Dual Infrared Flame Detector |
| Corresponding spectral range | 4.3μm, 5.0μm |
| Detection object | Flame |
| Sampling mode | Real-time optical path sampling |
| Display mode | LED display |
| Status indication | The blinking green LED indicates the normal operation (the number blinking times every 3s represents the sensitivity level), and the blinking red LED indicates an alarm. |
| Operation mode | The magnetic rod is used to adjust the sensitivity (4 levels) |
| Output signal | 4~20mA current; one fault relay contact, one alarm relay contact |
| Response time | ≤10s |
| Explosion-proof mark | Ex d II C T6 Gb/ Ex tD A21 |
| Degree of protection | IP66 |
| Operating voltage | DC24V ± 6V |
| Operating current | ≤30mA(DC24V) |
| Signal output | Relay passive contact, 4~20mA output |
| Maximum detection distance | 50m 0.3m*0.3m n-heptane flame |
| Detection angle | 90° |
| Weight | 1.5 ± 0.2 kg |
| Installation mode | Wall-mounted or suspended or pipe-clamped |
| Interface of cable entry device | Shell, two NPT1/2 interfaces |
| Shell | copper-free cast aluminum, epoxy resin baking paint finish |
| Ambient temperature | -20ºC~+60ºC |
| Relative humidity | ≤95%RH(without condensation) |
The detector offers a wide detection angle of up to 90° and reaches a maximum detection distance of up to 50 meters for a 0.3m*0.3m n-heptane flame.
The sensitivity is easily adjustable across 4 levels using a magnetic rod, which allows for configuration without needing to remove the detector's cap/enclosure.
It meets explosion-proof standards with the mark Ex d II C T6 Gb / Ex tD A21 and features an IP66 protection rating, ensuring reliable performance in hazardous industrial areas.
The detector supports multiple signal outputs, including a 4~20mA current output, one passive fault relay contact, and one passive alarm relay contact.
The detector features a robust shell constructed of copper-free cast aluminum with an epoxy resin baking paint finish, making it highly durable for harsh outdoor environments.
