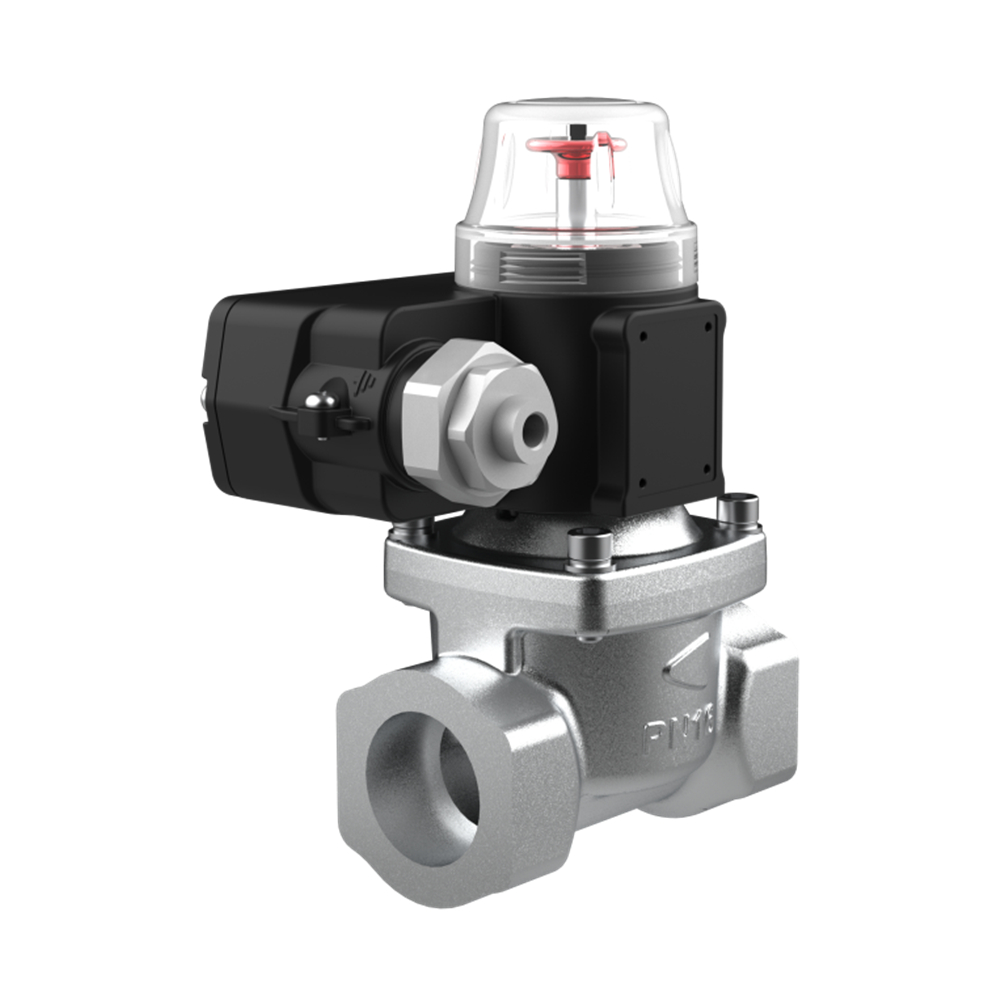

The XF5III Series Industrial Gas Solenoid Valve (Keep Normally Open) focuses on practicality and stability for industrial natural gas systems. Tailored for natural gas, its aluminum alloy body offers excellent corrosion and pressure resistance, fitting harsh industrial environments. Sealing material has NBR/FKM options, ensuring superior airtightness. Operating at -20°C~+60°C, it adapts to diverse industrial scenarios. With manual opening, dual closing methods (manual/power-off) and ≤1s closing time, it instantly cuts off gas in emergencies. Its stainless steel actuator enhances durability, while IP66 protection prevents dust and water damage. Boasting 10-year service life, Ex mb IIC T6 Gb explosion-proof grade and GB 44016-2024 compliance, it meets strict industrial safety standards, providing cost-effective, reliable emergency protection for industrial gas systems.
| Applicable Gas | Natural gas |
| Body Material | Aluminum alloy |
| Sealing Material | NBR / FKM rubber |
| Operating Temperature | -20°C ~ +60°C |
| Opening Method | Manual |
| Closing Method | Manual / Power-off |
| Valve Closing Time | ≤ 1s |
| Actuator Material | Stainless steel |
| Protection Grade | IP66 |
| Service Life | 10 years (typical) |
| Explosion-proof Grade | Ex mb IIC T6 Gb |
| Explosion-proof Type | Encapsulated type |
| Execution Standard | GB 44016 - 2024 |
| Model | Pipe Diameter | Maximum Working Pressure | Connection Size | Working Voltage | Closing Method |
|---|---|---|---|---|---|
| DRQF-15-0.4/BTLNE-XF5III | DN15 | 0.4MPa | 1/2" FTP | AC220V | Power-off / Manual |
| DRQF-15-0.1/BTLNE-XF5III | 0.1MPa | 1/2" FTP | |||
| DRQF-20-0.4/BTLNE-XF5III | DN20 | 0.4MPa | 3/4" FPT | ||
| DRQF-20-0.1/BTLNE-XF5III | 0.1MPa | ||||
| DRQF-25-0.4/BTLNE-XF5III | DN25 | 0.4MPa | 1" FPT | ||
| DRQF-25-0.1/BTLNE-XF5III | 0.1MPa |
The XF5III Series is specifically tailored and optimized for industrial natural gas systems.
This series features an Ex mb IIC T6 Gb explosion-proof grade (encapsulated type), an IP66 ingress protection rating, and complies with the GB 44016-2024 execution standard.
The valve has an instant cutoff design, with a valve closing time of 1 second or less (≤ 1s) when triggered.
The valve is opened manually, and it features dual closing methods: manual shut-off or automatic power-off emergency shut-off.
The body is made of corrosion and pressure-resistant aluminum alloy, the actuator is stainless steel, and the sealing is NBR or FKM rubber. The typical service life of the valve is 10 years.
Models support pipe diameters of DN15, DN20, and DN25 (with connection sizes of 1/2" FTP, 3/4" FPT, and 1" FPT) and are available in maximum working pressures of either 0.1MPa or 0.4MPa.
