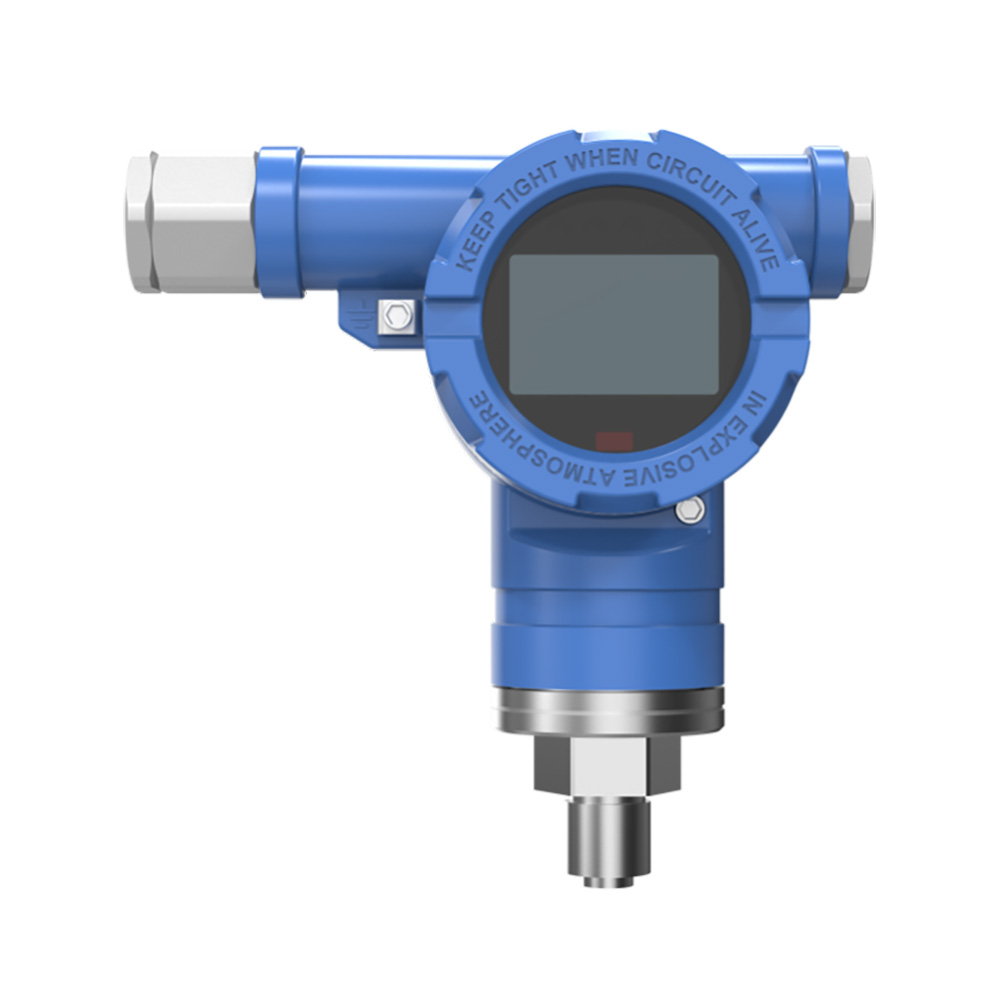

| Pressure Type | Gauge Pressure |
| Measurement Range | 100kPa/400kPa, other ranges available |
| Alarm Output | Active sound and light output |
| Working Voltage | DC24V |
| Communication Method | XBUS 2-wire , 4~20mA 2-wire HART, RS485 |
| Display Mode | Segment LCD |
| Housing Material | Aluminum alloy / 316 stainless steel |
| Sensor Housing | 316 stainless steel |
| Protection Grade | IP66 |
| Explosion-proof | Ex db IIC T6 Gb / Ex tb IIC T80°C Db |
| Ambient Temperature | -30~+70°C |
| Medium Temperature | -40~+120°C |
| Process Connection | M20X1.5 external thread, other threads customizable |
| Model | Sensor | Pressure Measurement Type | Measuring Range |
| XCS-P3051D-GP03 | Diffused Silicon | GP - Gauge Pressure | 100kPa / 400kPa |
| XCS-P3051T-GP03 | Single Crystal Silicon | 100kPa |
A: This pressure transmitter features an IP66 protection grade, ensuring robust resistance against dust penetration and powerful water jets, making it suitable for harsh outdoor environments.
A: It supports multiple versatile communication options, including XBUS 2-wire, 4~20mA 2-wire HART, and RS485 protocols, allowing for seamless integration into various industrial control systems.
A: The housing is available in durable Aluminum alloy or premium 316 stainless steel, while the sensor housing itself is constructed entirely from 316 stainless steel to ensure high corrosion resistance.
A: Yes, it is fully certified for explosion-proof safety with ratings of Ex db IIC T6 Gb and Ex tb IIC T80°C Db, making it highly secure for operations in hazardous areas.
A: Absolutely. While the standard connection is M20X1.5 external thread and the default measuring range is 100kPa/400kPa, we offer complete customization for measurement ranges, process connection threads, and measurement types to match your specific application requirements.
A: The transmitter operates within an ambient temperature range of -30 to +70°C and can withstand process medium temperatures ranging from -40 to +120°C.
