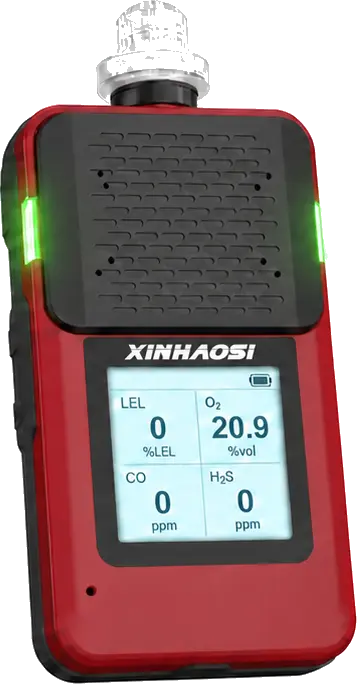

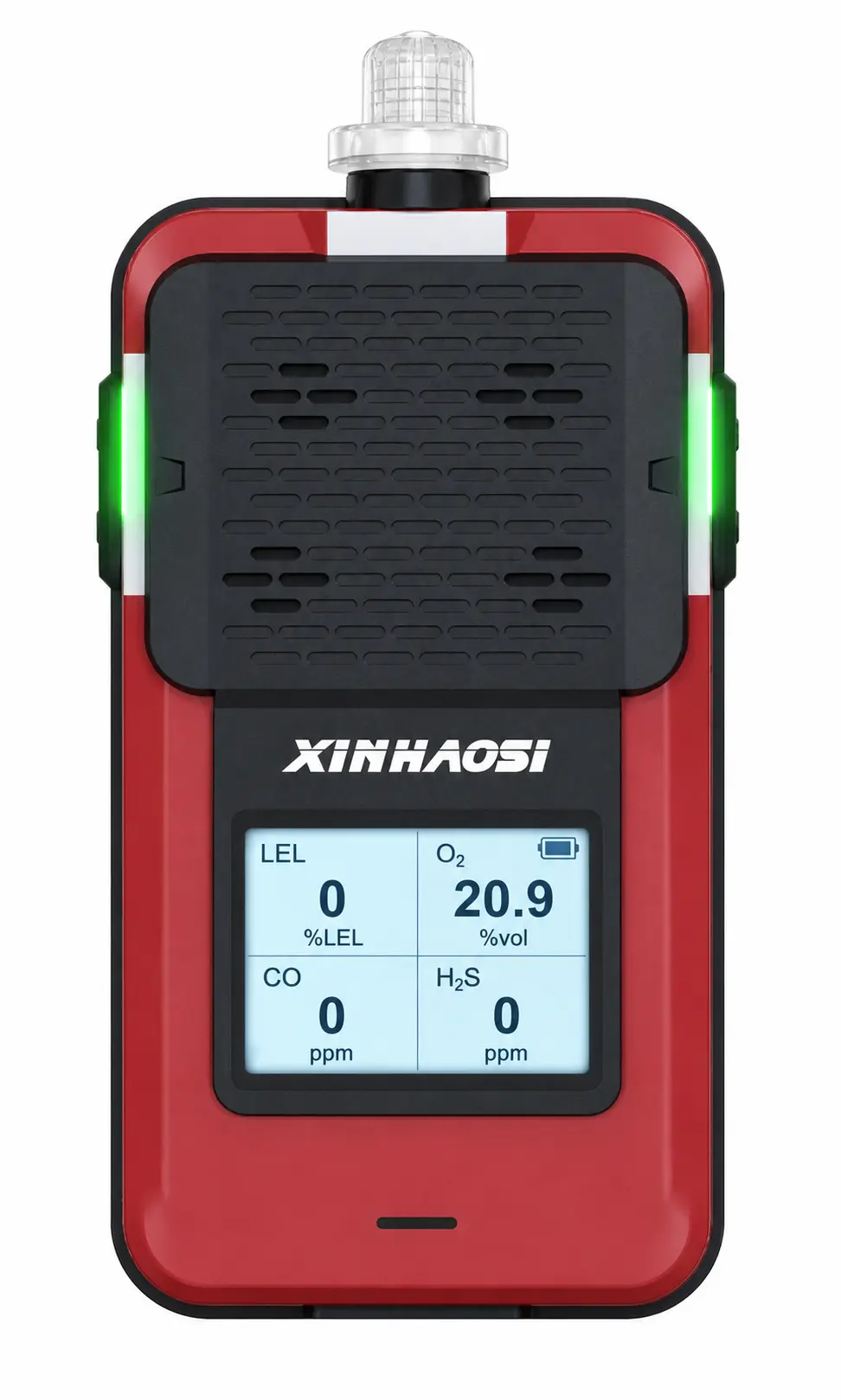

OEM Explosion Proof Portable Gas Detector- XM314 Suppliers, Manufacturer

• Replaceable sensors

• Intrinsically safe explosion-proof

• Pump-suction 4-in-1

• One-click SOS alarm

• Personnel positioning

• Fall monitoring

Product Description

`

Technical Parameters

Model XM314
Sampling Method Pump-suction / Diffusion
Detection Principle Catalytic, Electrochemical, Infrared, PID
Detected Gases Flammable gas, Toxic gas
Measuring Range Flammable gas: 3%~100%LEL; Toxic gas: See toxic gas list for details
Accuracy ±3%LEL (flammable gas) / ±3%FS (toxic gas)
Repeatability ≤2%
Response Time Flammable gas: T90<10s; Toxic gas: See toxic gas list for details
Alarm Audible alarm, LED light alarm, Vibration alarm
Output Mode USB interface, Bluetooth (optional)
Self-diagnosis Low battery, Calibration prompt, Sensor life, Sensor failure, Calibration signal lock, Insufficient register memory, Air pump blockage, Air pump air leakage
Sound Intensity ≥90dB @ 0.3m
Historical Records Power on/off records, Zero adjustment records, Calibration records, Alarm records, Fault records
Power Supply Lithium battery, Nominal voltage 3.6V, Capacity 2400mAh
Power Consumption ≤1W
Battery Life ≥10h, Normal temperature
Main Material Soft rubber: Anti-static TPU; Hard rubber: Anti-static PC
Weight 0.5kg
Explosion-proof Certification Ex db ia IIC T4 Ga
Metrological Certification CPA
Executive Standard GB15322.3-2019, GB3836.1-2021, GB3836.2-2021, GB3836.4-2021, JJF1364-2012, JJF1368-2012, JJF1421-2013
Protection Grade IP67
Temperature Range -40°C~60°C
Humidity Range 10%~95%RH (No condensation)
Pressure Range 86kPa~106kPa

Product Selection

Model Diffusion Pump-suction No. of Sensors 4G GPS Gyroscope Gooseneck Tube
XM311 1
XM311CGT 1
XM311BCGT 1
XM311-J 1
XM311CGT-J 1
XM312 2
XM312CGT 2
XM312BCGT 2
XM313 3
XM313CGT 3
XM313BCGT 3
XM314 4
XM314CGT 4
XM314BCGT 4

Product Description

description2

Frequently Asked Questions

Q Which gas detection principles are used in the XM314 model?
The XM314 model utilizes Catalytic, Electrochemical, Infrared, and Photoionization Detection (PID) principles to effectively detect both flammable and toxic gases.
Q What is the ingress protection (IP) rating and operating temperature range for the device?
The device features an IP67 protection grade, rendering it dustproof and capable of withstanding temporary immersion in water. It operates reliably in temperatures ranging from -40°C to 60°C.
Q What alarm types does the XM314 provide to alert users of gas hazards?
It features a triple-alarm system consisting of a loud audible alarm (≥90dB @ 0.3m), high-visibility LED light alarms, and a strong vibration alarm to ensure user safety in noisy or low-light environments.
Q How long is the typical battery life under normal temperature conditions?
Equipped with a high-capacity 3.6V / 2400mAh lithium battery, the device offers a continuous operating runtime of 10 hours or more under normal temperatures, with a power consumption of ≤1W.
Q Which models include advanced smart features such as 4G, GPS, and Gyroscope?
Models ending with "CGT" and "BCGT" suffixes (for example, XM311CGT, XM311BCGT, XM312CGT, XM312BCGT, XM313CGT, XM313BCGT, XM314CGT, and XM314BCGT) come equipped with built-in 4G, GPS positioning, and a Gyroscope.
Q How many sensors can be integrated into the XM311, XM312, XM313, and XM314 models respectively?
The number of sensors depends on the chosen model base: XM311 supports 1 sensor, XM312 supports 2 sensors, XM313 supports 3 sensors, and XM314 supports up to 4 sensors simultaneously.
