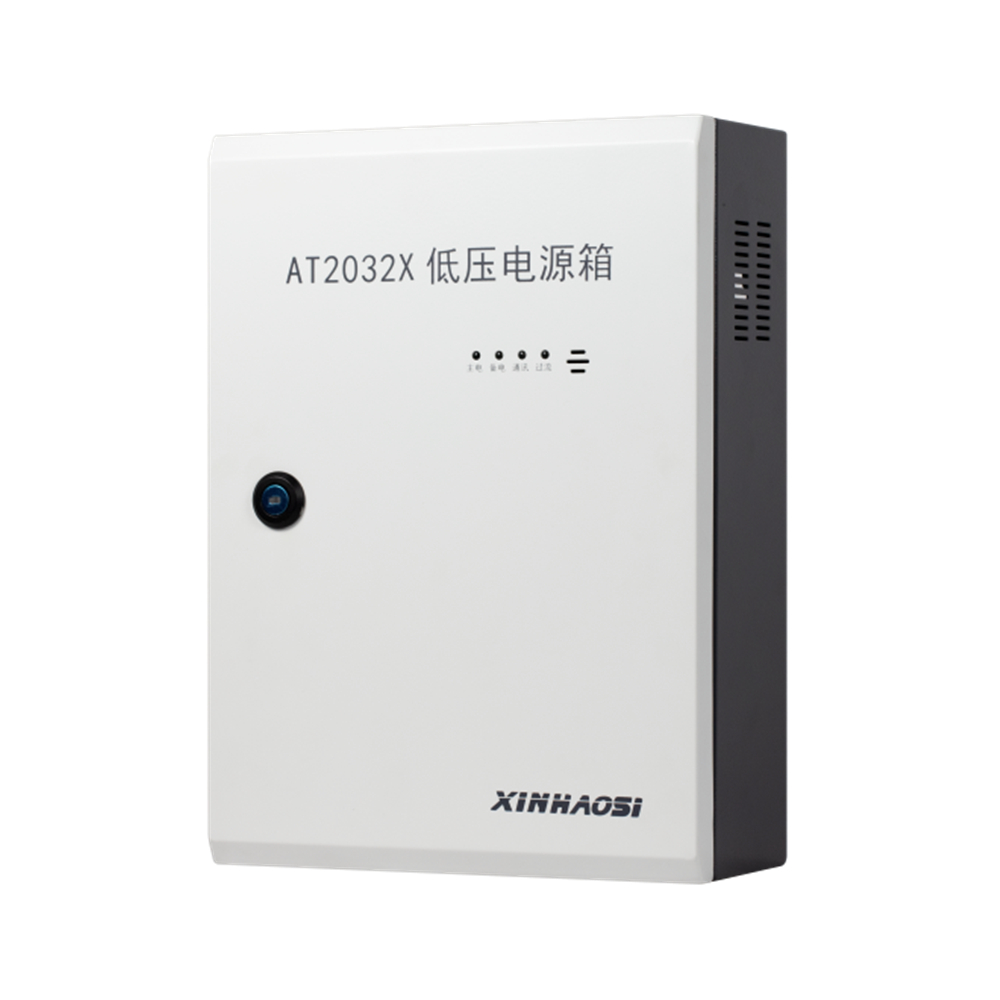

OEM AT2032X Low Voltage Power Box Suppliers, Factory

1 / 1

OEM AT2032X Low Voltage Power Box Suppliers, Factory

Send Inquiry

Product Description

Description

The AT2032X Low Voltage Power Box is a high-capacity, stable low-voltage power supply device for large-scale industrial control systems, power distribution stations and commercial complexes. XBUS communication allows seamless connection with central control systems and peripherals, enabling remote power monitoring, data transmission and fault alarms. Its working voltage (AC 170V-260V/50Hz) adapts to regional grid fluctuations. Equipped with a 12Ah/12V lead-acid backup battery, it provides longer emergency power than AT2031X series to avoid production interruption. 2.5A function bus protection safeguards high-power equipment and complex circuits. Measuring 350mm×260mm×112mm, wall-mounted and compact for dedicated spaces, it adapts to (-10~+60)℃ and <95%RH environments. With three product types, it meets diverse needs, offering reliable power for high-demand electrical control systems.

description2

Specification

Communication Method	XBUS
Working Voltage	AC 170V - AC 260V / 50Hz
Backup Power	One Lead-acid battery 12Ah / 12V
Function Bus Protection Point	2.5A
Product Dimensions	350mm × 260mm × 112mm
Mounting Type	Wall
Working Environment	Temperature: (-10~+60)℃, Humidity: < 95%RH (no condensation), Pressure: (86~106)kPa
Product Types	Indoor type / Waterproof type / Explosion-proof type

Frequently Asked Questions

Q1: What are the primary applications for the AT2032X Low Voltage Power Box?

A1: It is a high-capacity, stable low-voltage power supply device designed for large-scale industrial control systems, power distribution stations, and commercial complexes.

Q2: How does the AT2032X connect to central control systems?

A2: The device uses XBUS communication to allow seamless connection with central control systems and peripherals, enabling remote power monitoring, data transmission, and fault alarms.

Q3: What backup power capabilities does the AT2032X feature?

A3: It is equipped with one 12Ah/12V lead-acid backup battery, providing extended emergency power compared to the AT2031X series to prevent production interruptions.

Q4: What are the working environment limitations for this power box?

A4: It operates reliably in temperatures ranging from -10℃ to +60℃, with humidity below 95%RH (non-condensing), and atmospheric pressure between 86kPa and 106kPa.

Q5: What product types and mounting options are available for the AT2032X?

A5: It is wall-mounted and comes in three product variations to suit diverse needs: Indoor type, Waterproof type, and Explosion-proof type.
