The Handheld Uncooled Infrared Gas Leak Detector redefines portable gas inspection with its integrated infrared thermal imaging and TDLAS laser technology, delivering both visual and quantitative detection capabilities for industrial safety applications. Designed for field use in petrochemical plants, refrigeration systems, and natural gas facilities, it offers ultra-fast 0.5-second response and non-contact detection up to 20 meters, minimizing operator exposure to hazardous environments. With support for methane, VOCs, and multiple refrigerants, the device enables broad-spectrum gas leak visualization through real-time gas cloud imaging. It features a high-performance uncooled VOx detector, laser ranging, and Beidou positioning for precise leak location, alongside multi-mode display and wireless data transmission for flexible on-site use. Certified explosion-proof and IP54 rated, this detector provides reliable, intelligent, and user-friendly gas safety monitoring solutions for energy, utilities, and industrial sectors worldwide.

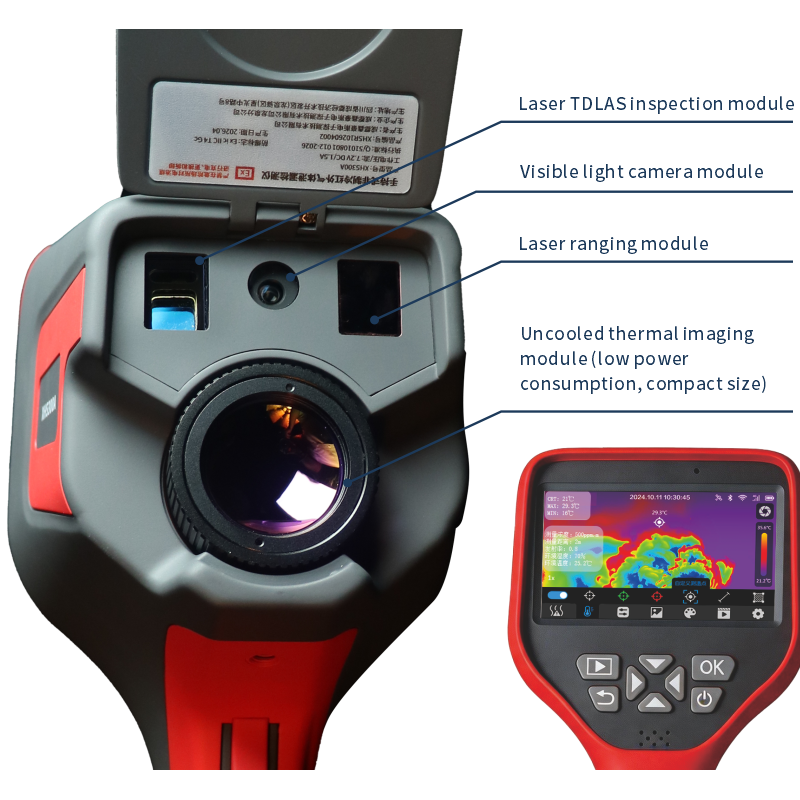

Combines uncooled VOx infrared thermal imaging and TDLAS laser technology for clear visual and quantitative analysis.
Delivers ultra-fast 0.5-second detection response with a non-contact safety range of up to 20 meters.
Features an Ex ic II C T4 Gc explosion-proof certification and IP54 dust and water resistance rating.
| Model | IR-2610 Handheld Uncooled Infrared Gas Leak Detector | |
| Thermal Imaging Parameters | Detector Type | Uncooled VOx detector |
| Detector Resolution | 640×512 | |
| Spectral Range | 7.0~8.5μm | |
| Thermal Sensitivity | 25mK | |
| Frame Rate | 25Hz | |
| Image Display | Display | 4.3-inch touchscreen (800 × 480) |
| Visible Camera | 5 MP | |
| Imaging Modes | Infrared, visible light, picture-in-picture, detail enhancement | |
| Color Palettes | 10 types | |
| Temperature Measurement | Temperature Measurement Range | -20°C to +150°C |
| Temperature Accuracy | ±2% or ±2°C | |
| Measurement Modes | Point, line, and area measurement; center point, cold/hot spot temperature tracking | |
| Temperature Calibration | Supports emissivity and ambient temperature correction | |
| Gas Concentration Measurement | Target Gas | Methane (CH4) |
| Detection Distance | Within 20 m | |
| Measurement Range | 0~50,000ppm·m | |
| Response Time | 0.5s | |
| Gas Cloud Imaging | Detectable Gases | Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, isooctyl acrylate, refrigerants (R13, R13B1, R123, R125, R134A, R417A, R422A, R508A) |
| Others | Laser | Laser ranging and laser indication |
| Alarm Modes | Gas leakage alarm and temperature alarm | |
| Data Storage | Supports image and video storage | |
| Explosion-proof Rating | Ex ic II C T4 Gc | |
The device is capable of detecting and visualizing Methane (CH4), nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, isooctyl acrylate, and various refrigerants including R13, R13B1, R123, R125, R134A, R417A, R422A, and R508A.
The IR-2610 supports non-contact gas leak detection up to a safe distance of 20 meters, with an ultra-fast response speed of just 0.5 seconds.
The detector is certified explosion-proof with an Ex ic II C T4 Gc rating and holds an IP54 protection class, ensuring safe and reliable operation in hazardous petrochemical and industrial environments.
Equipped with a high-performance uncooled VOx detector featuring 640×512 resolution and 25mK thermal sensitivity, it provides high-definition gas cloud visualization and precise temperature tracking.
Yes, it features integrated Beidou positioning for geographic tagging, laser ranging/indication for distance confirmation, and supports both image and video data storage.
