Description

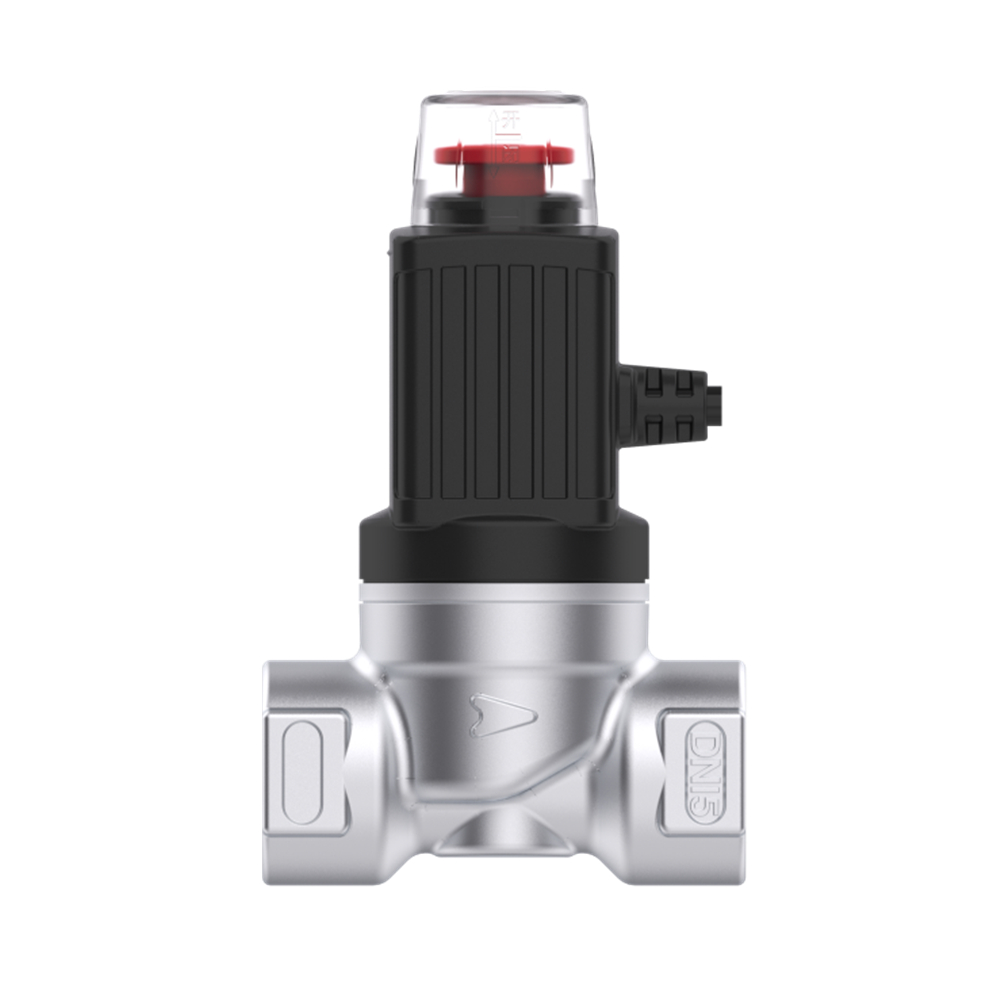

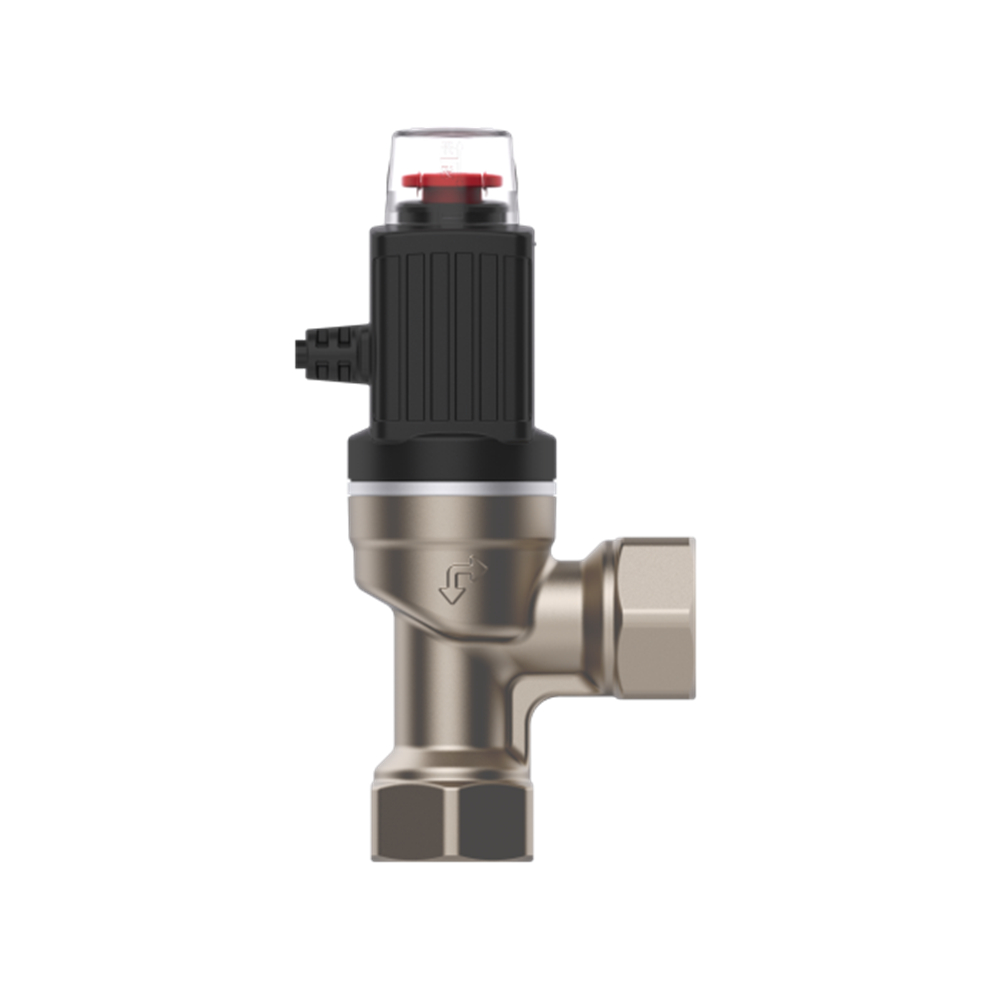

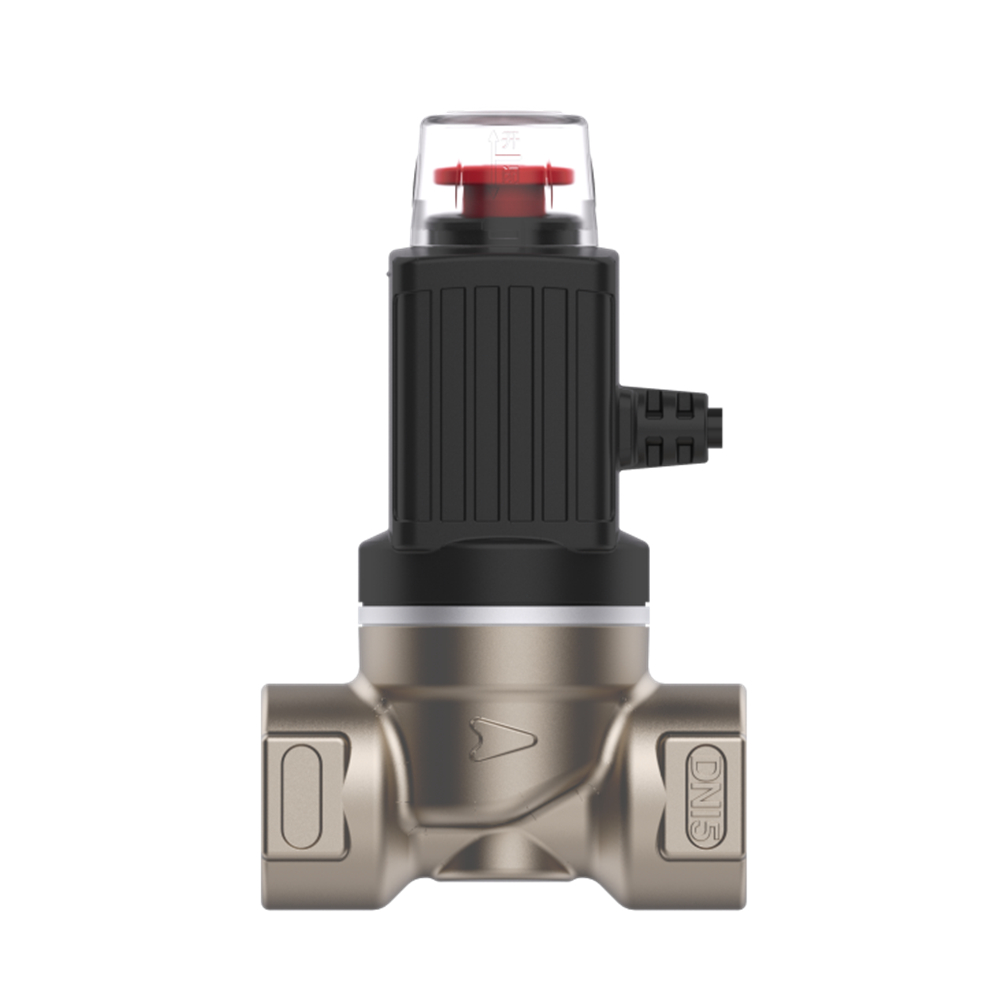

The XF2 Series Household Gas Solenoid Valve is a reliable safety device for household gas systems, providing rapid shut-off protection during gas leakage or emergencies. It applies to non-corrosive gases like natural gas, LNG and manufactured gas, matching most household gas types with strong compatibility. Adopting DC12V driving voltage and ≤1A pulse current, it features low power consumption and high performance. Made of high-quality NBR rubber for sealing, it ensures excellent airtightness to prevent gas leakage. With manual opening and dual closing methods (DC pulse energized and manual), it’s flexible to operate. Its valve closing time is ≤1s, instantly cutting off gas sources to minimize safety risks. Boasting 10-year service life and -20°C~+60°C operating temperature, it adapts to various climates. Equipped with Ex mb IIC T6 Gb explosion-proof grade, IP66 protection and compliant with GB 44016-2024, it offers safe, long-lasting protection for households.
Rapid Shut-off
Response time ≤ 1s to instantly isolate gas source in emergencies.
Explosion-proof
Ex mb IIC T6 Gb grade & IP66 rating for high industrial safety.
Dual Closing
Flexible control supporting both manual and DC pulse energized shut-off.
10-Year Service Life
Constructed with high-quality NBR rubber seals for lasting protection.
Frequently Asked Questions (FAQ)
What types of gas is the XF2 Series Solenoid Valve compatible with?
The XF2 Series is highly compatible and designed for non-corrosive gases, including natural gas, Liquefied Natural Gas (LNG), and manufactured gas, making it suitable for most household gas setups.
How fast does the valve shut off in case of an emergency?
The valve features rapid shut-off protection, closing in ≤1 second to instantly cut off the gas source and minimize safety risks during leakage or emergencies.
What are the electrical requirements for this gas valve?
The XF2 Series operates on a DC12V driving voltage with a pulse current of ≤1A, offering energy efficiency and low power consumption.
Can the valve be opened electrically?
No, the valve opening method is manual to ensure human check-offs before restoring gas flow. Closing can be performed either manually or electrically via a DC pulse energized signal.
What certifications and safety ratings does the XF2 Series hold?
The valve is built to meet high safety standards, featuring an Ex mb IIC T6 Gb explosion-proof rating, IP66 protection, and compliance with the GB 44016-2024 execution standard.
What is the typical service life and operating temperature range?
It has a typical service life of 10 years and can operate reliably in various climatic conditions within a temperature range of -20°C to +60°C.
