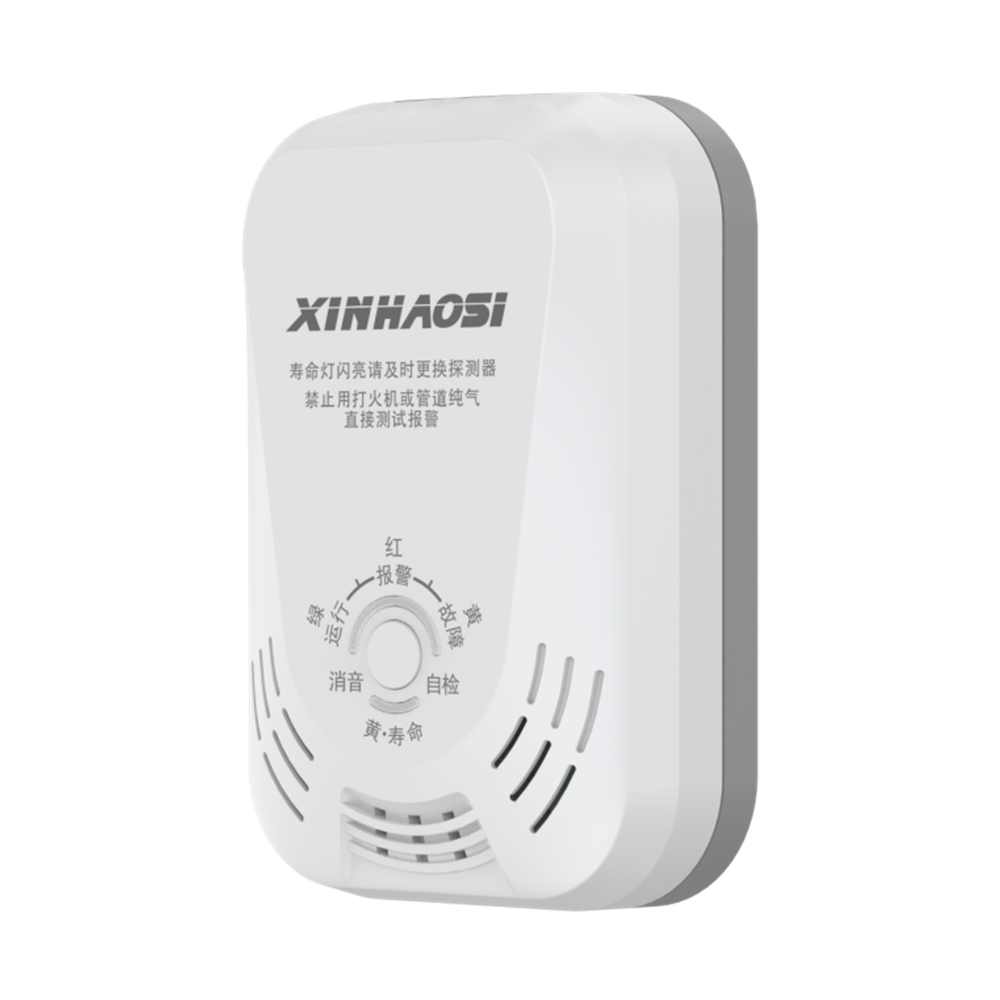

The JT-AT2004A / JY-AT2004A Series is an intelligent household combustible gas detector providing all-round family safety protection. Equipped with advanced temperature compensation, it adjusts detection parameters according to ambient temperature changes, avoiding false/missed alarms for natural gas and LPG. It has an automatic lifetime expiration reminder to prompt timely replacement. Supporting wireless solenoid valve connection, it cuts off gas sources quickly when leakage occurs, with clear valve status indication. A built-in black box records alarms, faults, and logs for maintenance. Unique in supporting NB-IoT/4G CAT1, it enables remote gas status monitoring via mobile devices. Made of V0-rated flame-retardant material with IP31 protection, it resists dust and light water splashes. Compact, lightweight, and easy to install, it is an essential intelligent safety helper for modern households.
Detector Specification
Specification Element
Details
Model
JT-AT2004A / JY-AT2004A Series
Measuring gas
CH4 (Methane), C3H8 (propane)
Measuring type
Diffusion type
Measuring method
Semiconductor
Lift time
5 years (typical)
Networking
NB (optional)
Alarm method
Light and sound
Output signal
Relay output / solenoid valve output
Mounting type
Wall
Dimensions
120(W) x 76(H) x 37(D) mm
Sensor Features (Semiconductor Type)
High Sensitivity
Detects low-concentration gases with noticeable changes in electrical signals.
Fast Response
Rapid alteration of semiconductor electrical conductivity upon gas adsorption enables quick detection.
Broad-Spectrum
Detects most volatile organic compound (VOC) vapors.
Long Lifespan & Cost-Effectiveness
Simple structure, low manufacturing cost, and stable long-term performance, making it suitable for cost-sensitive scenarios.
Frequently Asked Questions
Which gases does the JT-AT2004A / JY-AT2004A Series detect?
It is designed to detect combustible gases, specifically CH4 (Methane) and C3H8 (Propane).
How does the device handle ambient temperature variations?
The detector is equipped with advanced temperature compensation, adjusting its detection parameters automatically to avoid false or missed alarms.
What is the typical lifespan of this gas detector?
The typical lifetime of the detector is 5 years, and it includes an automatic expiration reminder to prompt timely replacement.
Does the device support remote monitoring?
Yes, it features unique support for NB-IoT/4G CAT1 (optional), which allows users to perform remote status monitoring via mobile devices.
Can it interact with safety valves during a gas leak?
Yes, it supports a wireless solenoid valve connection to quickly cut off gas sources when a leakage is detected, along with a clear valve status indication.
What is the physical protection level of the detector?
It is manufactured using V0-rated flame-retardant materials and features IP31 protection, making it resistant to dust and light water splashes.
